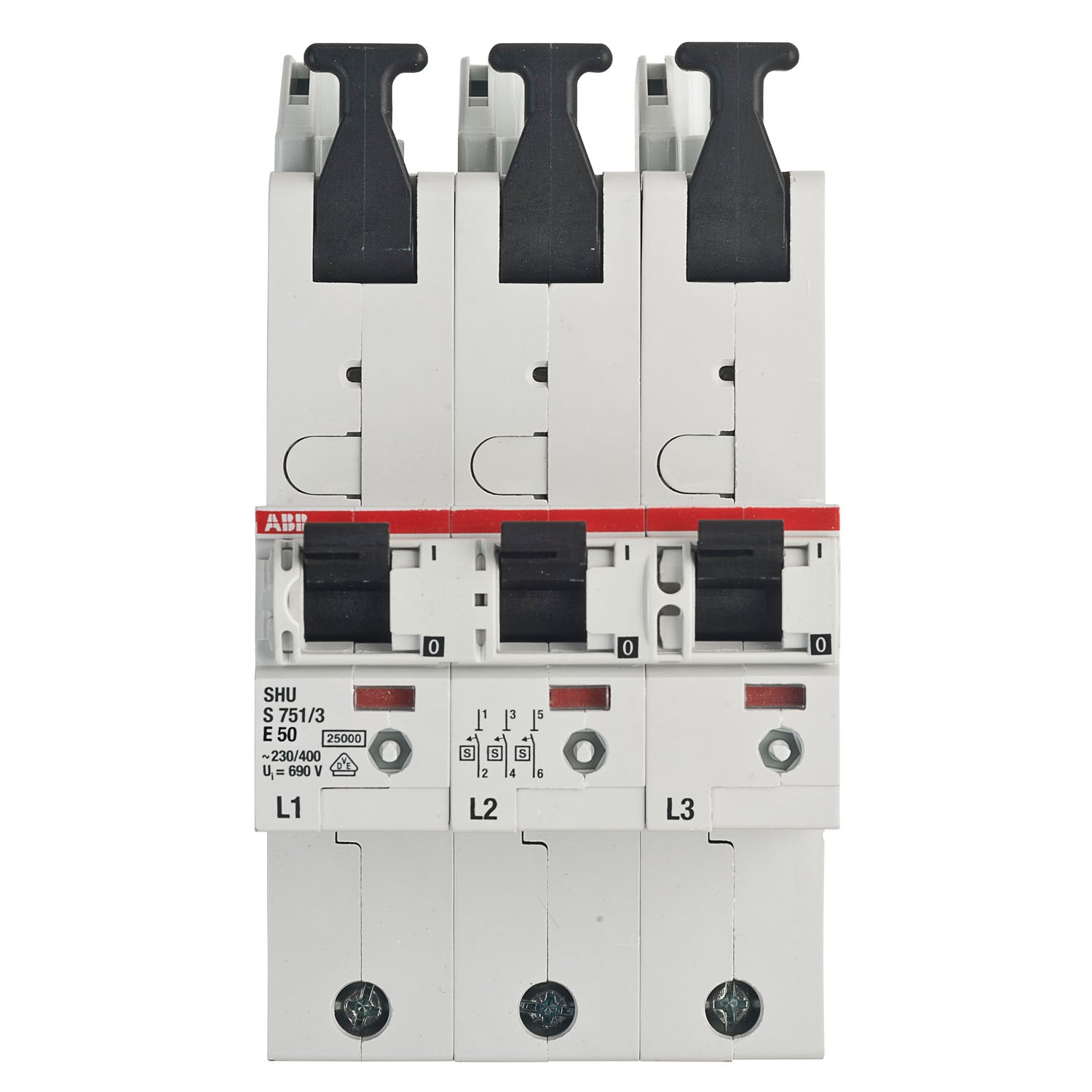

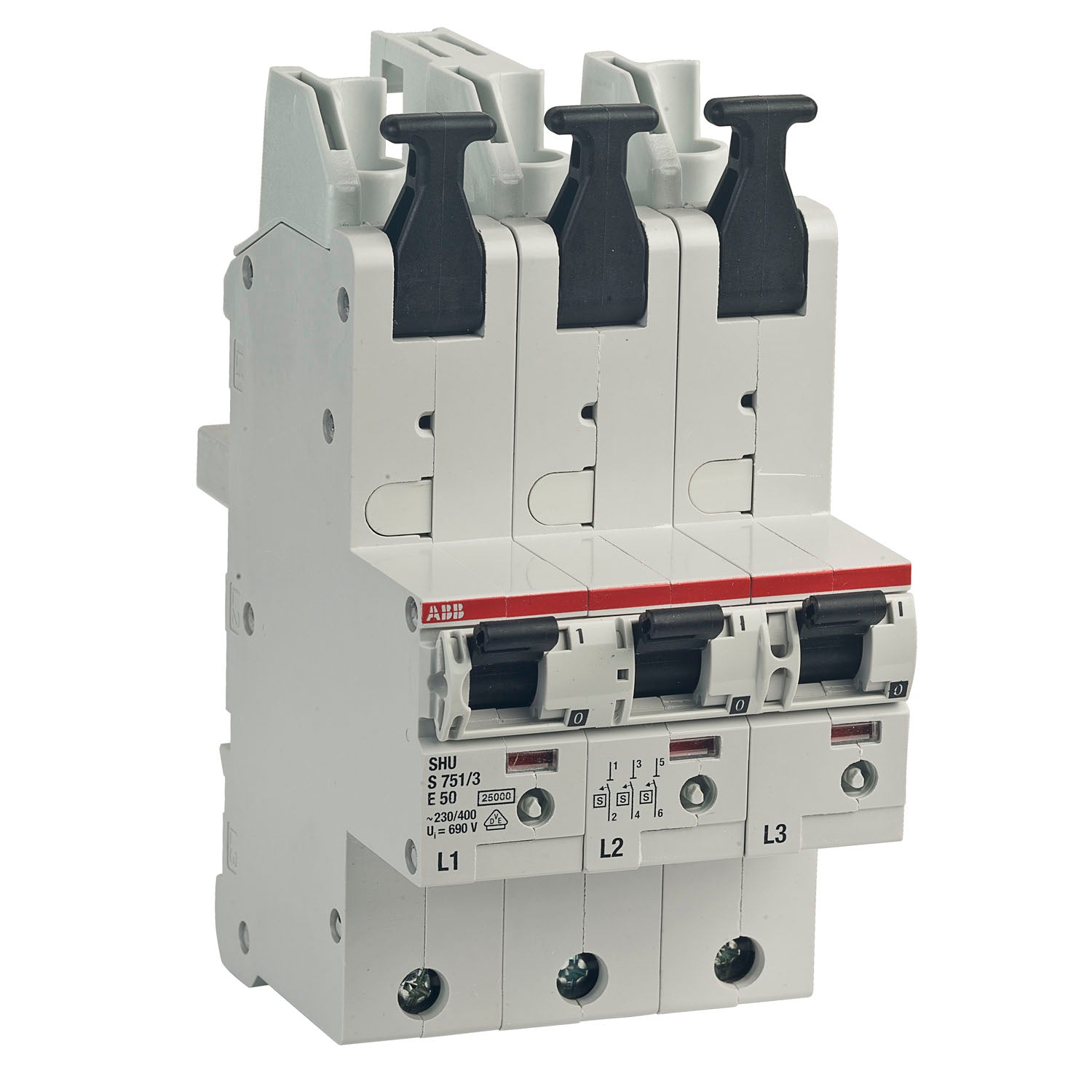

SLS switch ABB S751/3-E50 selective main circuit breaker SHU 50A 3x 1-pole with plug-in technology
Konnte die Verfügbarkeit der Abholung nicht laden.
SLS Switch: Overview of ABB S751/3-E50
Die selektiven Haupt-Sicherungsautomaten der Baureihe S750 sind nach DIN VDE 0641-21 als spannungsunabhängige selektive Hauptleitungsschutzschalter (SHU) zertifiziert sowie laienbedienbar und für die höchste Überspannungskategorie ausgelegt.
Ihr Anwendungsgebiet ist vielfältig: als Trennvorrichtung am Zählerplatz gemäß der TAB der Netzbetreiber bzw. VDE-AR-N 4101 genauso wie in allen Niederspannungs-Hauptverteilungen zum Schutz von Verteilungsstromkreisen und als Freischalteinrichtung mit Trennfunktion.

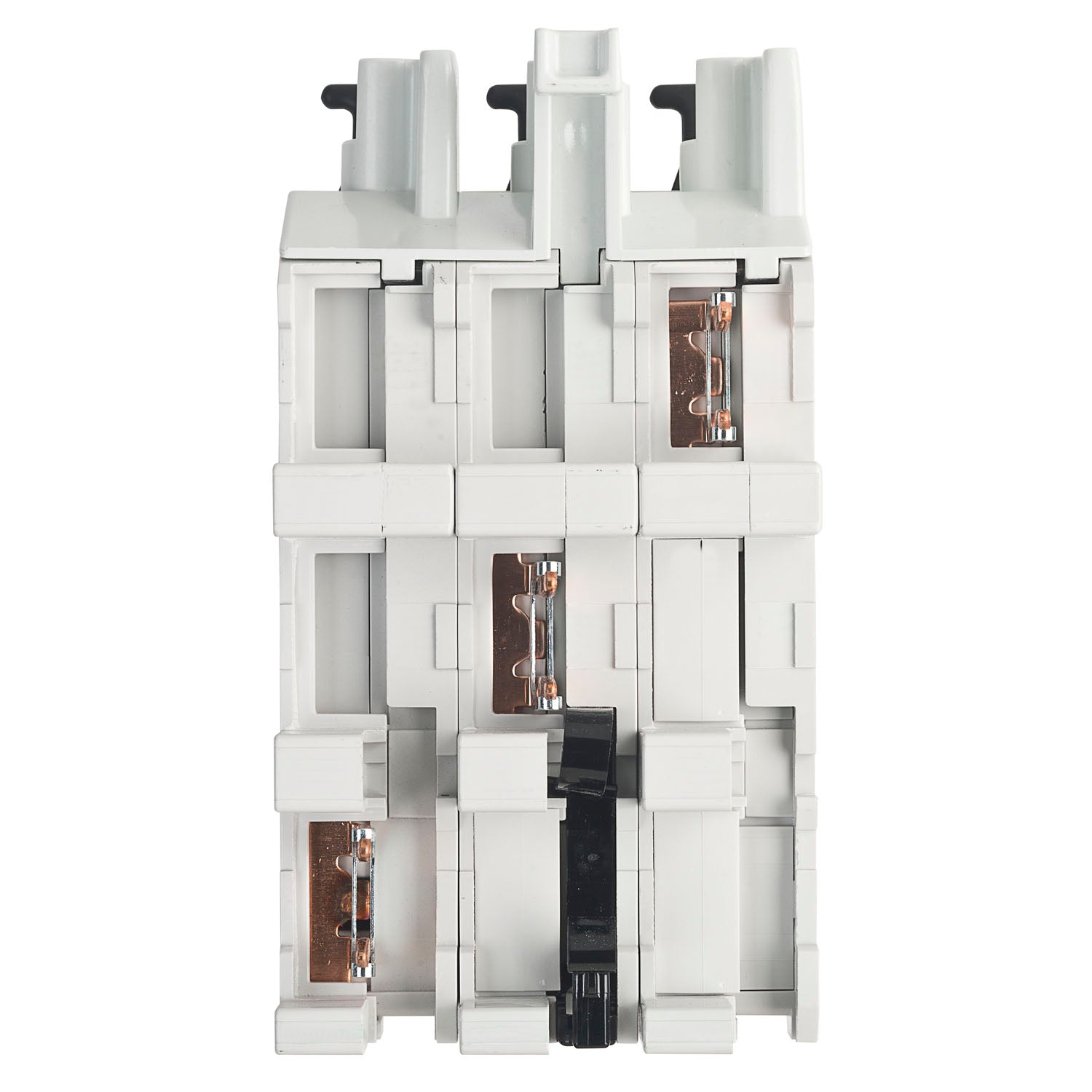

Hervorzuheben sind die besonderen Selektivitätseigenschaften zur Sicherstellung einer hohen Anlagenverfügbarkeit. Die Baureihe S750 ist zur direkten Montage auf ein 4-oder 5-poliges Sammelschienensystem 40mm (12mm x 5/10mm) vorgesehen.
Unabhängig von der Nennstromstärke des S750 kann über die untere Klemme direkt mit bis zu 50mm² und max. 100A auf das Sammelschienensystem eingespeist werden. Geräte der S 750-Familie beinhalten eine integrierte Sperrmöglichkeit, die eine gleichzeitige Blockierung der 3 Pole einer Drehstrom-Versorgung ermöglicht.
Der integrierte Sperrschieber verriegelt in EIN- oder AUS-Stellung und kann zusätzlich mit Vorhängeschloss, Drahtplombe oder Kabelbinder gesichert werden
.
Ausführung: SLS-Schalter S751/3-E50 selektiver Hauptsicherungsautomat 3x 50A 1-polig, Betriebsspannung 400/230V (AC), Bemessungsschaltvermögen 25kA
Installation erfordert Elektro-Fachkraft
Understanding the SLS Switch
The SLS switch, specifically the ABB S751/3-E50 model, is a selective main circuit breaker designed for optimal electrical performance. This device plays a crucial role in protecting electrical systems by interrupting currents in case of overloads or faults. It boasts a 50A capacity and is configured for three-pole operation, ensuring that it can effectively handle a variety of electrical loads. Because of its reliable performance, the SLS switch is widely used in residential and commercial applications.
Benefits of Plug-In Technology
One of the standout features of the SLS switch ABB S751/3-E50 is its plug-in technology. This innovation simplifies installation and maintenance, allowing for quicker replacements when necessary. Unlike traditional circuit breakers, this model enables straightforward plug-and-play functionality, which is especially beneficial for technicians who may need to perform upgrades or repairs swiftly. Thus, operators save both time and effort when dealing with their electrical systems.
Applications and Use Cases
The SLS switch is versatile and can be utilized in various scenarios, including industrial plants, commercial buildings, and residential electrical installations. It helps maintain safety and efficiency by minimizing downtime during electrical faults. Moreover, because of its selective tripping feature, the SLS switch ensures that only the affected circuit is disconnected, allowing other circuits to continue functioning. This characteristic is critical in environments where uninterrupted power supply is essential.
